Understanding SCIF and SAPF Door Requirements

How ICD 705 Standards Protect Classified Operations

In any accredited secure environment, perimeter access points are one of the most critical elements of physical protection. Within a Sensitive Compartmented Information Facility (SCIF) or Special Access Program Facility (SAPF), doors are a part of the accredited boundary that safeguards sensitive compartmented information and prevents unauthorized entry.

This article explains how ICD 705 standards apply to different door types, why they matter during SCIF design and construction, and how proper specification supports long‑term compliance.

Why Doors Are Critical in a Secure Facility

Perimeter access points sit at the intersection of physical security, access control, and acoustic performance. If one element fails, it can undermine the entire layered defense model.

Improperly designed or installed openings can:

• Allow intelligible speech or RF emissions to escape the secure area
• Create opportunities for unauthorized access
• Delay or jeopardize SCIF accreditation
• Require costly remediation after construction is complete
• Reduce RF protection

For this reason, ICD 705 technical specifications require perimeter openings to perform at the same level as surrounding walls, floors, and ceilings.

Primary Entrance Requirements

The primary entrance is the main controlled access point into the SCIF or SAPF and plays a central role in daily operations and after‑hours protection.

Construction and Assembly

Primary entrances must be built as rated assemblies, meaning the door, frame, seals, and hardware are designed and installed to function together. Approved constructions typically include reinforced metal or solid‑core assemblies appropriate for a high security facility.

Using mismatched components can compromise acoustic performance and invalidate ratings.

Acoustic and RF Performance

The entrance must provide acoustic protection equivalent to the surrounding SCIF space, typically aligned with STC requirements defined in the tech spec. Where mission needs dictate, RF shielding may also be required and validated by a Certified TEMPEST Technical Authority.

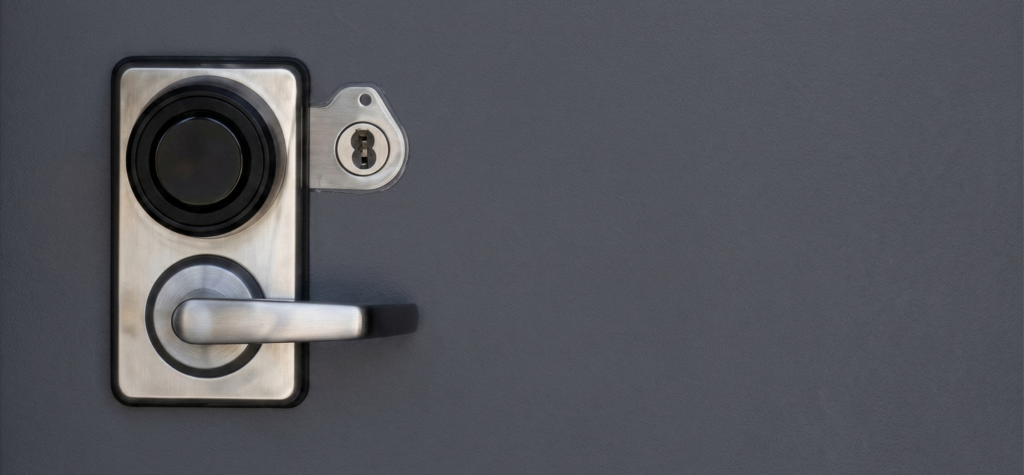

Locks, Alarms, and Access Control

Primary entrances integrate directly with the facility’s security system, including:

• A compliant access control system for occupied periods
• Approved locking mechanisms for unoccupied periods
• Connection to the intrusion detection system for continuous monitoring

This entrance is typically the point where alarms are armed and disarmed, making reliability and proper installation essential.

Secondary Entrances

Updated guidance allows for limited use of secondary entrances with approval from the Cognizant Security Authority.

These openings must meet the same construction, acoustic, and alarm requirements as the primary entrance but are not used for locking or unlocking the space after hours. When properly approved, they can improve circulation in larger facilities without reducing protection.

Emergency Exit Openings

Emergency exits must balance life safety and security requirements.

They are required to:

• Match perimeter construction and acoustic performance
• Remain alarmed at all times
• Use panic hardware for exit‑only operation
• Exclude exterior hardware

Final configurations are driven by fire and life safety codes but must still prevent unauthorized entry into the secure working area.

Double‑Leaf Configurations

Double‑leaf openings are commonly used to move oversized equipment or material into a SCIF space.

To maintain compliance:

• One leaf must remain secured when not actively in use
• Each leaf requires independent alarm monitoring
• Fixed leaves must include approved locking hardware

These openings are frequently scrutinized during inspections due to their potential misuse.

Roll‑Up Openings

Roll‑up openings present unique challenges. Currently, there are no standard solutions that reliably meet higher acoustic ratings.

When operationally necessary:

• They must be constructed of heavy‑gauge steel
• Integrated into the intrusion detection system
• Restricted to non‑discussion areas

Facilities requiring both large clear openings and acoustic performance often rely on custom solutions.

Vault Doors and Specialized Storage

Vault doors are typically used when large quantities of classified material cannot be stored in approved containers. While they exceed baseline security requirements, they involve significant cost and structural reinforcement and are rarely appropriate for routine access.

Doors Between Adjacent SCIFs

Any opening connecting two accredited spaces is still treated as part of the perimeter. Both sides must independently control access and alarms, and the opening must meet the highest applicable acoustic requirement.

Unilateral access between SCIF rooms is not permitted.

Fire Safety, Accessibility, and Compliance

Even in a secure area, entrances must comply with:

• Fire life safety codes
• ADA accessibility requirements
• Local building regulations

Security enhancements cannot override these obligations, making early coordination essential.

Why Door Design Affects Accreditation

During inspections, doors are evaluated as part of the fixed facility checklist because they directly affect:

• Protection of sensitive information
• Prevention of unauthorized access
• Long‑term compliance with ICD 705

Improper specification is a common reason projects delay SCIF accreditation.

Final Takeaway

Every platform we support operates within secure environments that require accredited SCIF doors. Explore how our solutions align with ICD 705 requirements across different mission contexts.
